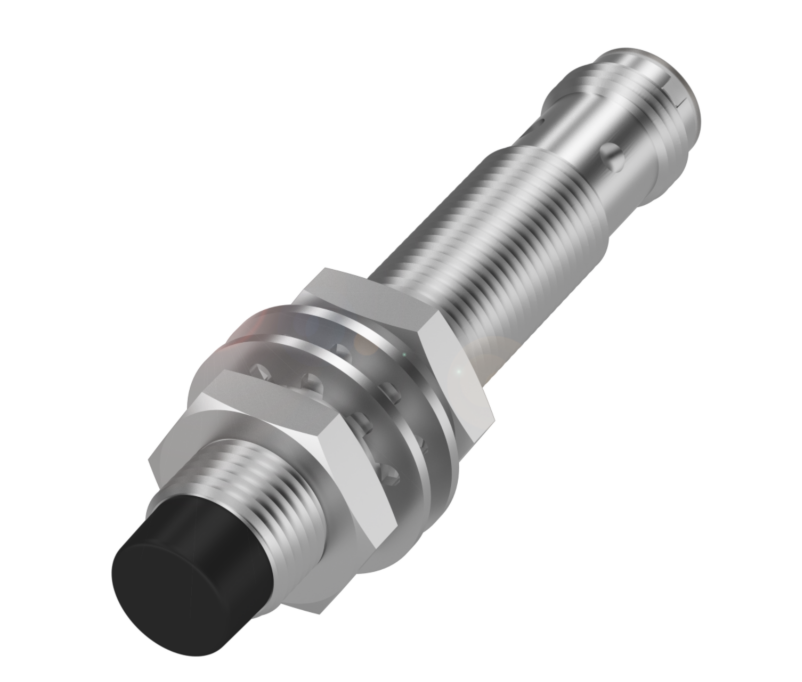

BES01HE

Inductive standard sensors
Typecode:

BES 516-357-S4-C

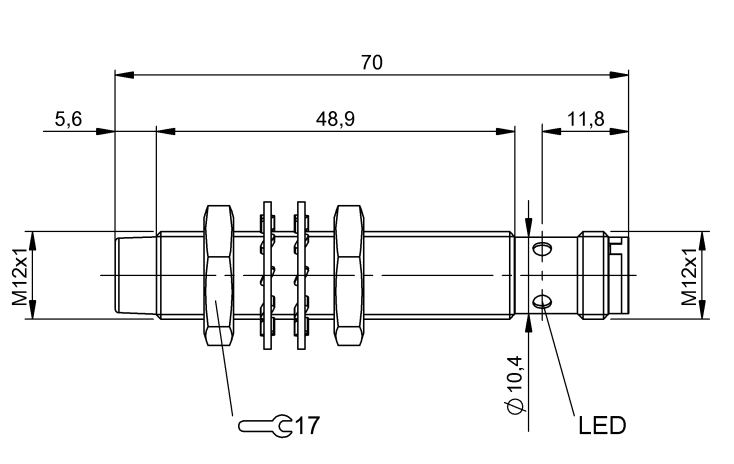

Dimension

Ø 12 x 70 mm

Style Housing

M12x1

Installation

non-flush

Range

4 mm

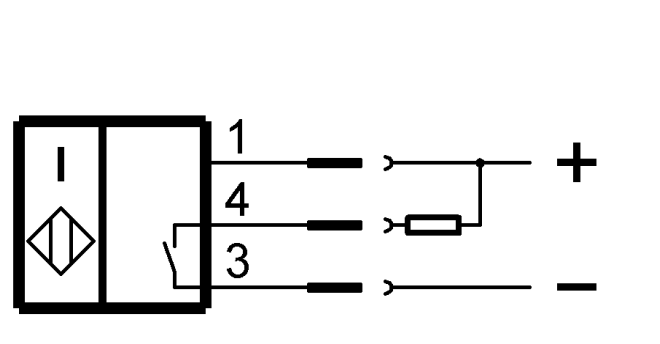

Switching output

NPN Normally open (NO)

Switching frequency

2500 Hz

Housing material

Stainless steel

Material sensing surface

PBT

Connection

Connector, M12x1-Male, 4-pin

Operating voltage Ub

10...30 VDC

Ambient temperature

-40...85 °C

IP rating

IP68

Approval/Conformity

CE
UKCA
cULus
WEEE
