BES00C9

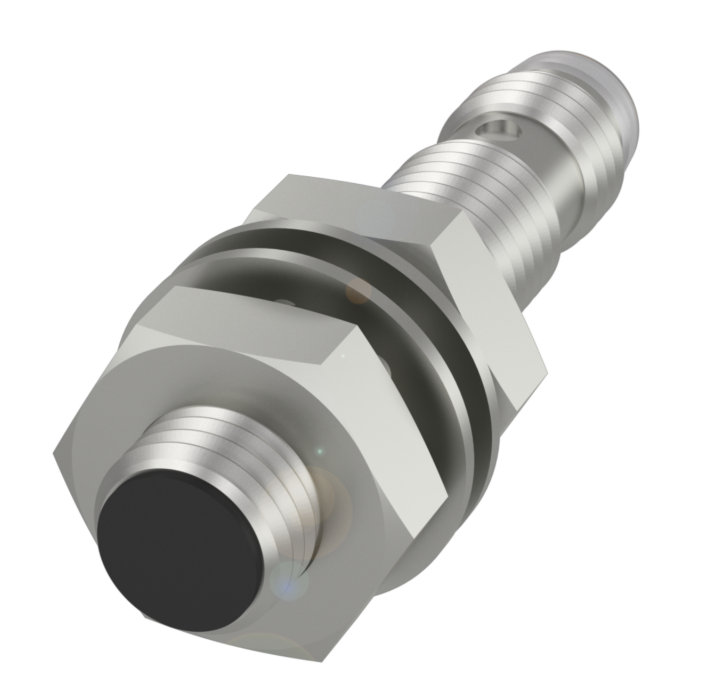

Inductive standard sensors
Typecode:

BES M08EE-NSC20B-S49G-003

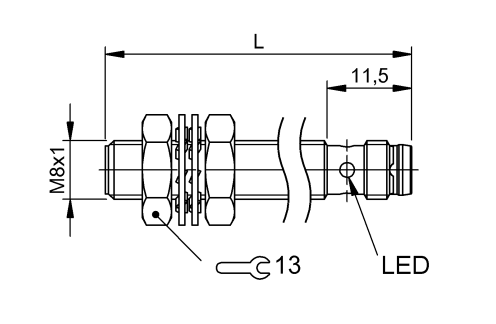

Dimension

Ø 8 x 40 mm

Style Housing

M8x1

Installation

for flush mounting

Range

2 mm

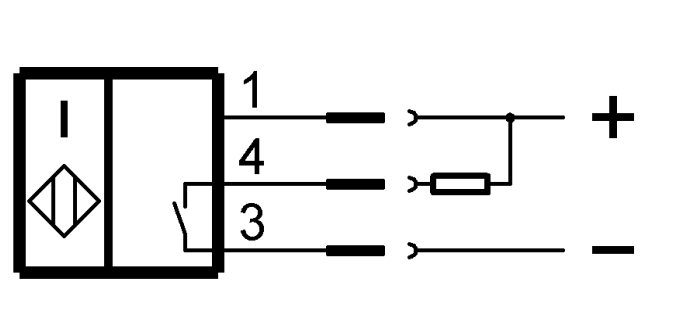

Switching output

NPN Normally open (NO)

Switching frequency

5000 Hz

Housing material

Stainless steel

Material sensing surface

PBT

Connection

Connector, M8x1-Male, 3-pin

Operating voltage Ub

10...30 VDC

Ambient temperature

-40...85 °C

IP rating

IP68

Approval/Conformity

cULus
CE
WEEE
